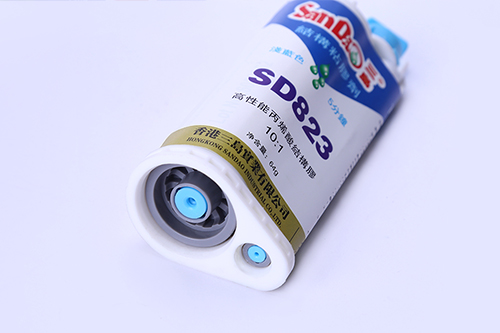

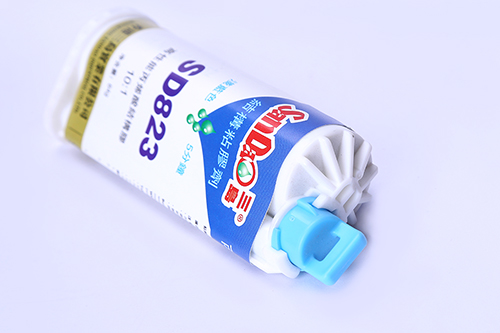

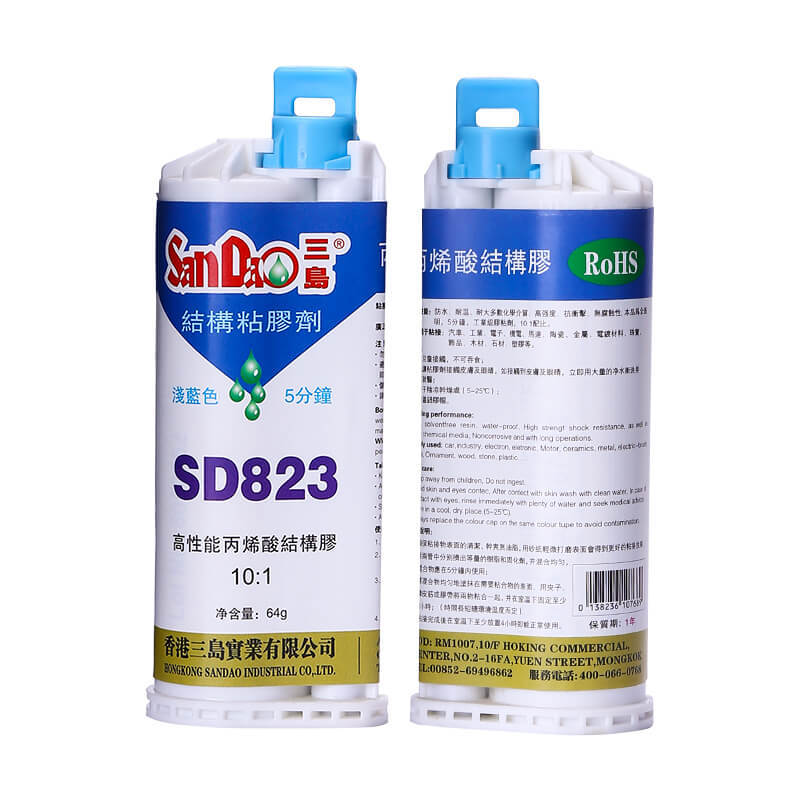

Epoxy resin structural adhesive SD823
Epoxy resin structural adhesive SD823 is a kind of high strength acrylate structural adhesive, two-component 10:1, medium viscosity, fast curing (25 ℃, 5min), fast bonding and fixing, hard and toughness after curing, high adhesion strength and impact resistance. Anti-aging, good solvent resistance.
◪ High strength, high performance, elastic, instantaneous, two components, safety and environmental protection
suitable for fast fastening and bonding of metal, hard plastics, composite materials, glass, etc., especially for mobile phone and notebook shell, screen and keyboard frame, suitable for high speed production line in electronic factory.

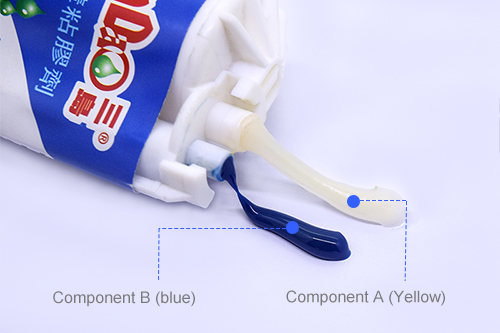

|performance||Component A||Component B|
|Viscosity (25℃ m pa. s )||85000-100000||35000-50000|
|Applicable time (mins)||4|| |
|3.After Curing characteristic|
|shear strength（N/mm.2)||PC/Aluminum magnesium||10.02|
|Split / elongation %|| 150|
|Hardness（shore- D)|| 68|
Remind:The above performance data are typical data measured in the temperature of 25 ℃, humidity of 70% of the laboratory environment, only for reference, we cannot guarantee all the data can achieve under a specific environment. Customers are kindly requested to use actual measure data in using.
Epoxy resin structural adhesive
SD823 is a high strength acrylate structural adhesive with a two component 10:1 system.
odorless, non-pollution, safety and environmental protection, medium viscosity, fast curing .
It has fast bonding and firmness. hard and tough after curing. high bonding strength and impact resistance, and good resistant to aging and solvent.
AB mixing tube
packaging specifications: 64g /tube
Put on AB glue gun and put on the thread mixing head.
The thickness of adhesive layer should be 0.05mm, the coated object should be clamped immediately, and the maximum bonding strength will be guaranteed by uniform contact pressure.
To obtain the highest mechanical strength, the surface of the material can be polished or sandblasted, and then the dust and oil stains on the surface can be scrubbed with a special solvent.
Adhesive should be put on both sides of the object and fix the splice in avoid of dislocation. Do not mix the lid of A and B to prevent contamination of the gum.
1. AB adhesive is slightly irritating, please wear gas mask and anticorrosion gloves when operating.
2. Cover at any time after each extraction, lest moisture absorption affect curing and performance.
3. Mass use of this product needs to be in a well-ventilated place.
Packaging and preservation
AB glue is packed with AB mixed pipe, 64g/ pcs, transported as non-dangerous goods, should be stored in a dry, shady place (below 5 ℃ ~ 26 ℃), the shelf life is within 12 months from the date of manufacture.Company Features1.
