Epoxy resin adhesive series is manufactured by our exquisite materials which are of epoxy based adhesive and resin adhesive. In some cases, it can achieve flame retardant, weathering, and thermal conductivity properties2.
The growth prospect of the product is fueled by an increased demand from customers. It should be fully cured before realizing its use value3.
The product is quality-assured and withstands all kinds of strict tests. It is moisture-proof and shock-resistant4.
The product is examined under the supervision of experienced QC experts. The product features good extrusion properties5.
The fully trained and qualified QC team is responsible for the quality of this product. It has a long-term anti-yellowing ability
Electronic parts bonding potting adhesive SD868
Metal & plastic adhesive AB glue SD868 is a two-component high-temperature resistant adhesive based on epoxy resin. It has advantage of high strength, weak acid and alkali resistance, impact resistance, low smell, resistance to most chemical media, extreme temperature and excellent electrical insulation. Mainly suitable for high temperature resistant metal, ceramic, etc.
◪ Electronic parts bonding potting adhesive SD868 has the advantages of fast curing , wide application, high bonding strength, water resistance, oil resistance, fatigue resistance.
◪ Excellent resistance to high and low temperature. It can work in the temperature range of 60-150 ℃.
Sandao Metal & plastic adhesive AB glue SD868 is widely used in solid assembly of industrial components, such as sporting goods, solar, wind, composite materials, electronics, transportation and aerospace bonding reinforcement, adhesive synthesis, assembly, packaging, filling and sealing. It is especially suitable for bonding and packaging of electronic parts. There are many formulations to connect steel, aluminum, copper with low surface energy level plastics, glass, wood, masonry and other materials.
Electroplating paint bonding
|Epoxy resin AB glue||SD811 part A||SD811 part B|
|Appearance /color||transparent||dark brown|
|Viscosity (mPa.s 25℃)||8000-12000||10000-13000|
|Specific gravity (g/ml 25℃)||1.0-1.05||1.0-1.05|
|Ratio（weight ratio pbw）||1||1|
|Gel time under normal temperature（25℃）20g||2-4h|
|Curing time|| 80℃||30mins|
|Active hydrogen equivalentg/eq||/||185/195|
|Distortion temperature HDT||80℃|
|Solume resistivity（Ω.cm）25℃||1.0~1015 |
|Surface resistivity（Ω.cm）25℃||0.9×1015 |
|Shear strength of different materials（Mpa）|
|Aluminum / copper||16-19|

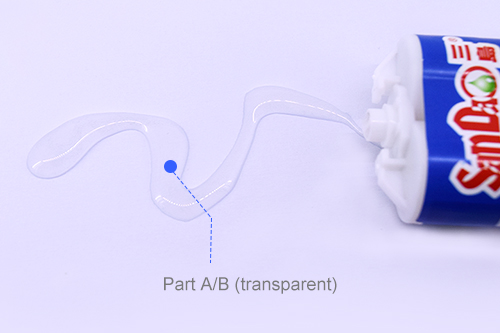

Transparent epoxy resin AB glue
SD868 Epoxy AB Adhesive is an epoxy resin Based two component high Temperatureadhesive.
Fast curing speed, wide application range Resistance to most chemical media Extreme temperature and excellent Electrical insulation properties.
Green environmental protection
Low odor, no pollution, high strength, weakAcid and alkali resistance, impact resistance High bonding strength, water resistance
Oil resistance and fatigue resistance.

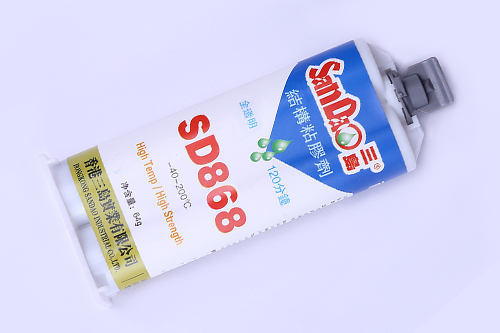

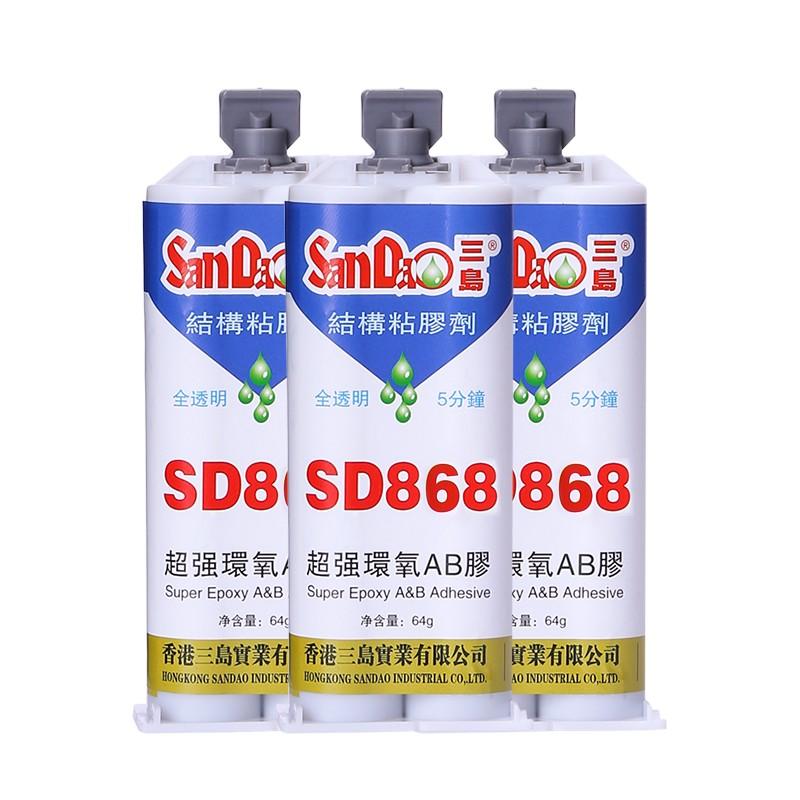

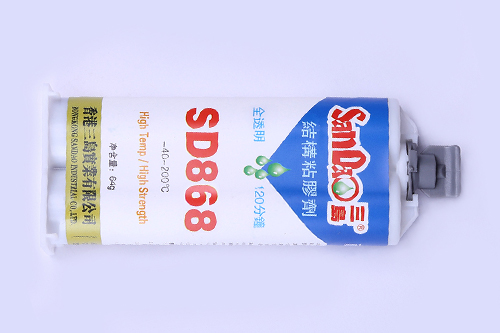

AB mixing tube
Very convenient to use, packaging specifications: specifications are 64g / support.

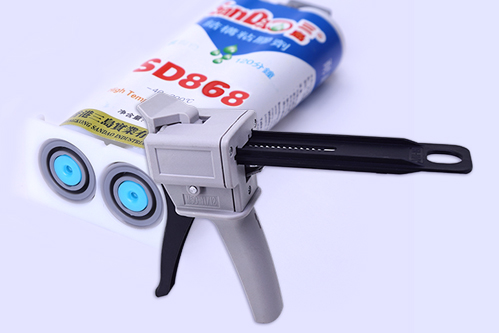

Put on AB glue gun and put on the thread mixing head.
The thickness of adhesive layer should be 0.05mm, the coated object should be clamped immediately, and the maximum bonding strength will be guaranteed by uniform contact pressure.
To obtain the highest mechanical strength, the surface of the material can be polished or sandblasted, and then the dust and oil stains on the surface can be scrubbed with a special solvent.
Adhesive should be put on both sides of the object and fix the splice in avoid of dislocation. Do not mix the lid of A and B to prevent contamination of the gum.
1. This product is slightly irritating, please wear gas mask and anticorrosion gloves when operating.
2. Cover at any time after each extraction, lest moisture absorption affect curing and performance.
3. Mass use of this product needs to be in a well-ventilated place.
Packaging and preservation
Epoxy resin AB sealant is packed with AB mixed pipe, 64g/ pcs, transported as non-dangerous goods, should be stored in a dry, shady place (below 5 ℃ ~ 26 ℃), the shelf life is within 12 months from the date of manufacture.Company Features1.
Huizhou SANDAO New Material Co., Ltd has a very strict quality controlling system which promises that goods we produced are always of the best quality. 2.
SANDAO uses our industry knowledge, expertise and innovative thinking to drive customers' business growth and bring you greater benefits. Contact us!
