SD3813UV  Glass & metal UV adhesive

SD3813UV Glass & metal UV adhesive

Model number
SD3813
MOQ
1pcs
Color
transparent liquid
Package
50ml/pcs, 250ml/pcs
Main characteristic
UV glue. high transparency ,moderate viscosity, strong adhesion
Main application
ordinary plastics such as PMMA,PC. etc.
Lead time
within a week after payment

our product

bg


SD3813UV adhesive
SD3813UV adhesive is a one-component, UV-curable, acrylate adhesive. This product is specially designed for bonding glass and metal. With high strength, high stability, good weather resistance and other characteristics. Mainly used in glass furniture industry.

characteristic

  • ◪   High strength, high stability,High transparency, no white, no atomization after curing

  • ◪   Moderate viscosity, suitable for sizing

  • ◪   Good weather resistance

Application

bg





product Performance

bg


performance


appearancesYellowish transparent liquid


viscosity3000-4500 mPa.s


(@25℃, rotational viscometer)


 condition of cure

The following values are measured when the glass is bonded to the glass under a 40-watt philips UV light intensity of 7.5 mw/cm

positioning time9s

Fully solidified energy600-800mj/cm²

physical and chemical performance
The following data are measured after curing by the accumulated energy 800 mj/cm of the low-pressure non-polar mercury lamp source
hardness(D)75
elongation at break(%)250
Tensile strength(MPa)18
Adhesive property
The following data are measured after curing by the accumulated energy 800 mj/cm of the low-pressure non-polar mercury lamp source
Bonding substratecohesional strength (NM)
Aluminum  / glass18
Stainless steel / glass18
Weathering test
The following data are measured after curing by the accumulated energy  800 mj/cm of the low-pressure non-polar mercury lamp source
base materialtest conditionBond strength retention rate(%)
Aluminum  / glass-40℃(1h)65℃(1h)20 circulate90
Stainless steel / glass-40℃(1h)+65℃(1h)20 circulate90
Aluminum  / glass65℃90%RH(72h)90
Stainless steel / glass65℃90%RH(72h)90
Aluminum  / glasssoak in water90(bonding surface is normal)
Stainless steel / glasssoak in water90(bonding surface is normal)

Storage:tore in a cool and shady place. Close the bottle cap well. Do not return the remain glue to the original bottle. The optimum storage temperature is 8-25 ℃, too high or too low temperature will affect the properties of the glue.

Notes:This data is measured by the chemical technicians in the laboratory, which has certain reference value for the use of customers. However, because the usage methods and conditions of each user are different, it is suggested that the users find out the best process and method according to their own conditions.

Product details

bg
SD381UV glass metal glue
SD3813UV adhesive is a one-component, UV-curable, acrylate adhesive.
Green environmental protection
Low odor, harmless to the human body, passed SGS environmental certification.High strength, high stability.
Light yellow transparent liquid
High strength, high stability, good weather resistance, high transparency after curing, no blushing, no atomization

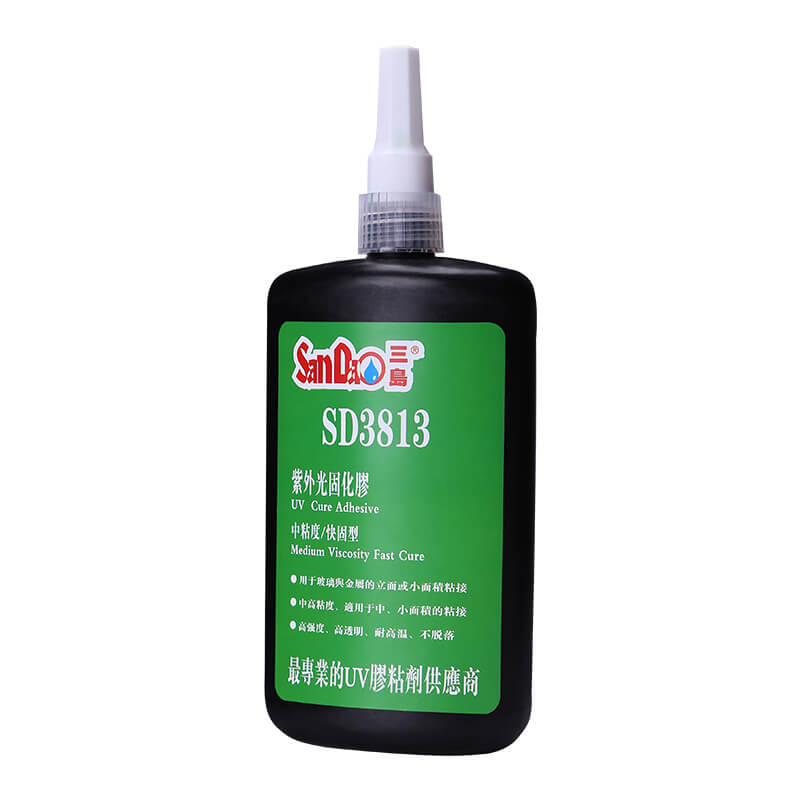

Plastic bottle packaging
Very convenient to use, gently squeeze, you can glue, packaging specifications: specifications have 250ML / PCS.
