SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating

SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating

Model number
SD6105
MOQ
1pcs
Color
Gray/Black/White
Package
10kg/ set
Main characteristic
stable dielectric insulation, good chemical stability, easy to remove
Main application
long-term protection of sensitive circuits or electronic components,.
Lead time
within a week after payment
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Comparison
silicone rubber, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.SANDAO New Material's silicone rubber is produced in strict accordance with standards. We make ensure that the products have more advantages over similar products in the following aspects.
Enterprise Strength
  • With a focus on service, SANDAO New Material provides comprehensive services for customers. Constantly improving service ability contributes to the sustainable development of our company.
Company Advantages
1. We update Two-component addition-type potting adhesive TDS periodically to make it cater the modern ge rtv silicone market.
2. The superior material makes the product superb in quality.
3. The quality of the product is totally assured by the adoption of the strict quality management system.
4. People can be assured that it's not likely to droop and warp over time. Even it is washed many times, it still keeps the perfect shape.

our product

bg


SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-1
Sandao Two-component flame-retardant heat-conductive potting adhesiveSD6105
Sandao Two-component flame-retardant heat-conductive potting adhesiveSD6105 is suitable for long-term protection of sensitive circuits or electronic components, with stable dielectric insulation, the elastomer formed after curing is in a large range of temperature and humidity; Eliminating stresses from shocks and vibrations. It can maintain the original physical and electrical properties under various working conditions. This item has good chemical stability, easy to clean and remove after filling. in order to repair the electronic components. Excellent temperature resistance, can be used at-50 ℃ for a long period of time, fully in accordance with the European Union ROHS, can pass through the UL94-V0 fire-proof class.

Application

bg


SD6105 is used for sealing and potting of LED Street Light driving Power supply, LED spot light Power supply Module, Electroplating Power supply, Power Rectifier, Transformer, Generator PCB, oven and other High heating and fire prevention products, as well as large Power Electronic components, Coating protection of electronic modules and circuit boards which with high requirements for heat resistance and heat dissipation.

SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-2

Generator circuit board

SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-3

LED spotlight power module

SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-4

Sealed potting


SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-5

Plating power supply

SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-6

LED street light drive power supply

SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-7

Transformer



product Performance

bg


Item610561056105
Before curingPart Aappearanceblackwhitegray
viscosity(cps)3500~55003500~55003500~5500
relative density(g/cm³)1.10~1.151.10~1.151.10~1.15
Part BappearanceWhite liquidWhite liquidWhite liquid
viscosity(cps)3500~55003500~55003500~5500
relative density(g/cm³)1.10~1.151.10~1.151.10~1.15
A:B(ratio)1:11:11:1
Curing typebi-component  additive typebi-component additive typebi-component additive type
Viscosity after mix(cps)3500~55003000~55003000~5500
Operate time(min)55~8055~8055~80
Curing time(min 25℃)480480480
Curing time(min 80℃)202020
After curinghardness(ShoreA,24hr)40~5540~5540~55
tensile strength (Mpa)<1.50<1.50<1.50
shear strength (Mpa)2.002.002.00
Linear Shrinkage(%)0.30.30.3
temperature range(℃)-60~260-60~260-60~260
volume resistivity(Ω·m³)1.0×10161.0×10161.0×1016
dielectric strength (KV/·㎜)≥27≥27≥27
dielectric constant(1.2MHz)3.23.23.2
Leakage resistance index(V)600600600
thermal conductivity [W/(m·K)]0.800.800.80
inflaming retarding propertyUL94-V0UL94-V0UL94-V0

Mark: The above properties were measured at room temperature.

Product details

bg
SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-8
Thermally conductive flame retardant potting sealant
SD6105 is a two component 1:1 cross-linking by reaction, gray, solidified into a high performance elastomer.
SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-9
Gray solid
It has stable dielectric insulation properties, temperature resistance, good chemical stability, and easy to clean and remove after potting.
SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-10
Eco-environmental protection
Non-corrosion, non-pollution and EU RoHS standard with flame resistance UL94-V0
SANDAO useful Two-component addition-type potting adhesive TDS  manufacturer for electroplating-11

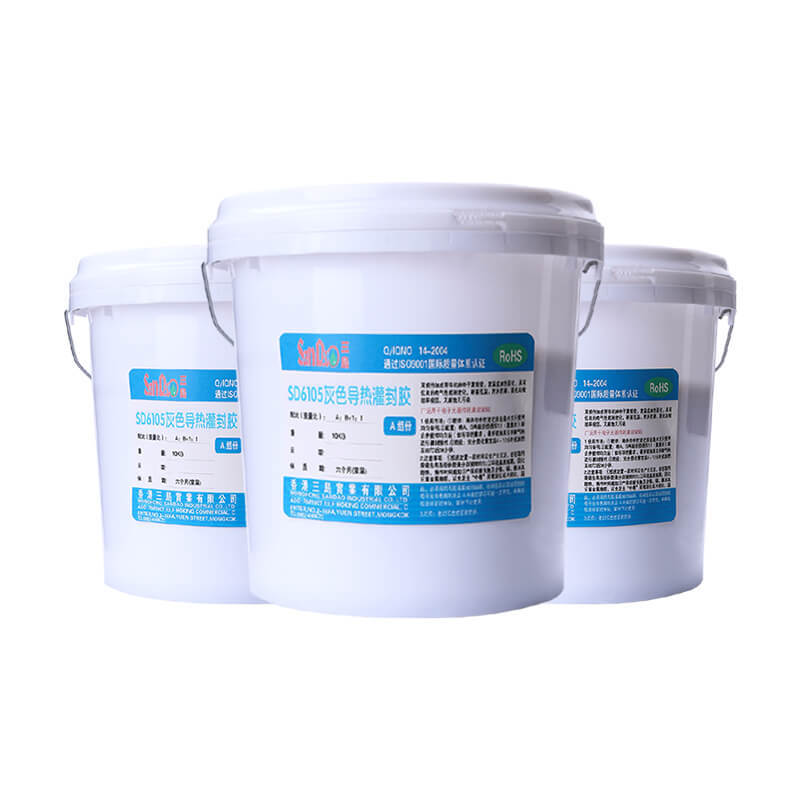

Plastic barrel seal
packaging, protective glue, 10kg /set (component A/ 5kg .component B/5kg), shelf life of 12 months.

Use instructions

bg


Caution

  • 1.   Weighting: Accurate weighing the part A and part B. (stir A and stir B separately before weighting, Evenly redistribute slightly subsided fillers into glue.)

  • 2.   Mix glue: B component is added to A component and mixed evenly;

  • 3.   Remove air bubbles: The evenly mixed rubber material is placed in the vacuum cabinet to remove foaming;

  • 4.   Pouring: After air bubbles removed, pouring the glue into the parts and components for potting; (the surface of the parts and the mixing container before pouring should be clean and dry, do not contact with the compounds such as N、P、S、Sn、Pb、Hg、As, so as not to affect the solidification.

  • 5.   Curing: solidification of a potting part at room temperature or heated.


Packaging and preservation

bg


10kg/ set (5kg component A  plus 5kg component B), this product is nontoxic, non-dangerous goods, transported according to general chemicals, stored in a cool (room temperature) dry place, shelf life last for 12 months.


Company Features
1. SANDAO is widely known by people at home and abroad.
2. We have a plant that is perfect in scale, precision, and speed. Being well equipped, it helps us to have the unrivalled manufacturing capacity, so we can offer unbeatable delivery times.
3. Huizhou SANDAO New Material Co., Ltd will guarantee greater customer satisfaction throughout the purchasing procedure. Inquire online! By providing the best quality and professional service, Huizhou SANDAO New Material Co., Ltd hopes to establish more partnerships with each customer. Inquire online! Our relentless pursuit of ge rtv silicone has translated into excellent quality and quality service. Inquire online!
SANDAO Two-component addition-type potting adhesive TDS has to go through the following production stages: CAD software design, fabrication of aluminum frame, track creation, and installation of all accessories. This product is easily repaired if scratched
SANDAO Two-component addition-type potting adhesive TDS has been tested for guaranteed safety. It has passed the electric strength test, also known as high-voltage insulation test under different rated voltage conditions. Minor scratches on it can be easily sanded or buffed out with fine sandpaper
During the preliminary stage, SANDAO ge rtv silicone has to go through the ore extraction process. This process includes several stages, namely, beneficiation, refine, and melt processes. Treated with fine surface workmanship, it has no glue mark or black spots
The coil springs SANDAO ge rtv silicone contains could be between 250 and 1,000. And a heavier gauge of wire will be used if customers require fewer coils.
The design of SANDAO Two-component addition-type potting adhesive TDS is scientific and humanized. It is designed adopting the concept of less effort and minimized pool cleaning time provided by the designers. This product is easily repaired if scratched
Two-component addition-type potting adhesive TDS's design uses Two-component addition-type potting adhesive TDS concept, is Two-component addition-type potting adhesive TDS.
