SANDAO two part adhesive is manufactured by dedicated workforces. 2.
This product features good stretchability. In the stretch test, it is not prone to elastic fibers exposure or broken stitches. 3.
Thanks to the well-produced epoxy ab glue , SANDAO has achieved its new peak in this field. 4.
Quality is the most important part and Huizhou SANDAO New Material Co., Ltd will pay much attention to it.
Epoxy resin AB adhesive SD811
Epoxy resin AB adhesive SD811 is a two-component high-temperature resistant adhesive based on epoxy resin. It has high strength, weak acid-base resistance, impact resistance, low smell, resistance to most chemical media, extreme temperature and excellent electrical insulation characteristics. Mainly suitable for high temperature resistant metal, ceramic, etc.
◪ Fast curing, wide range of application, high bonding strength, water resistance, oil resistance, fatigue resistance.
◪ Excellent resistance to high and low temperature, can work in the temperature range of 60-150 ℃.
Sandao Epoxy resin AB adhesive are used for bonding of metal, ceramic, glass, electroplating / paint / magnetic materials, such as aircraft motor, automobile, machinery, ship, electronics, electrical apparatus, instrument, building, furniture, toys,. high temperature resistant parts such as railway vehicles ,etc, AB glue can also be used to adhesive water tank, oil road, carburetor, cylinder cover, exhaust pipe, bushing of driving shaft, plastic parts such as baffle, vehicles lamp glass, car handle, etc.
Electroplating paint bonding
Mechanical component bonding
|Epoxy resin AB glue||SD811 part A||SD811 part B|
|Viscosity (mPa.s 25℃)||8000-12000||10000-13000|
|Specific gravity (g/ml 25℃)||1.0-1.05||1.0-1.05|
|Ratio（weight ratio pbw）||1||1|
|Gel time under normal temperature（25℃）20g||45-60mins|
|Curing time|| 80℃||30mins|
|Active hydrogen equivalentg/eq||/||185/195|
|Distortion temperature HDT||80℃|
|Solume resistivity（Ω.cm）25℃||1.0~1015 |
|Surface resistivity（Ω.cm）25℃||0.9×1015 |
|Shear strength of different materials（Mpa）|
|Aluminum / copper||16-19|
Transparent epoxy resin AB glue
SD811 Epoxy AB Adhesive is an epoxy resin two component high Temperature adhesive.
Fast curing speed, wide application range, extreme temperature and excellent electrical insulation characteristics.
Green environmental protection
odorless, non-pollution, high strength, weak acid and alkali resistance, impact resistance, high adhesion strength, water resistance, oil resistance, fatigue resistance.

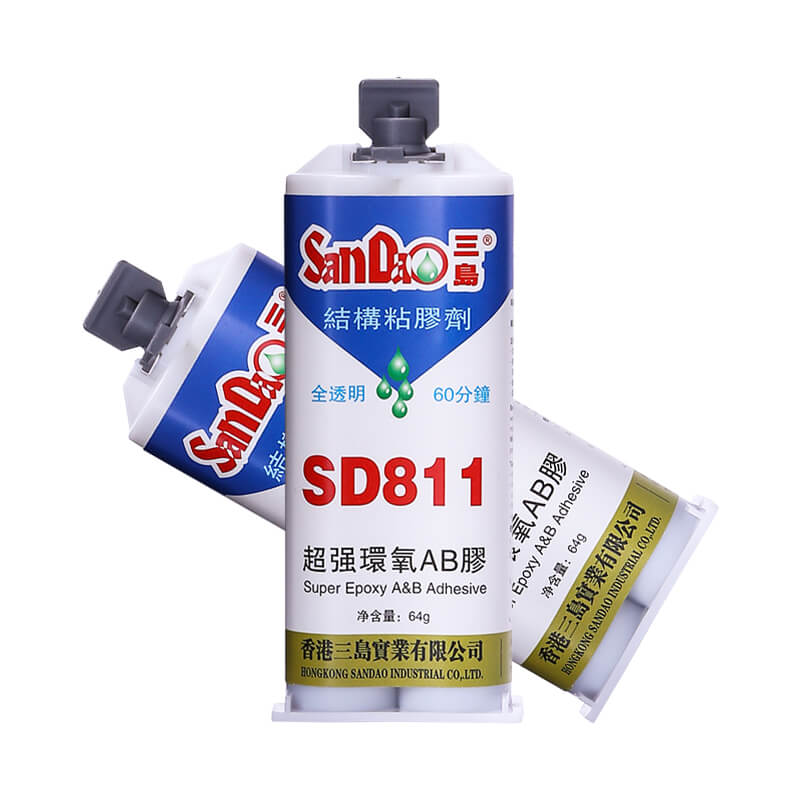

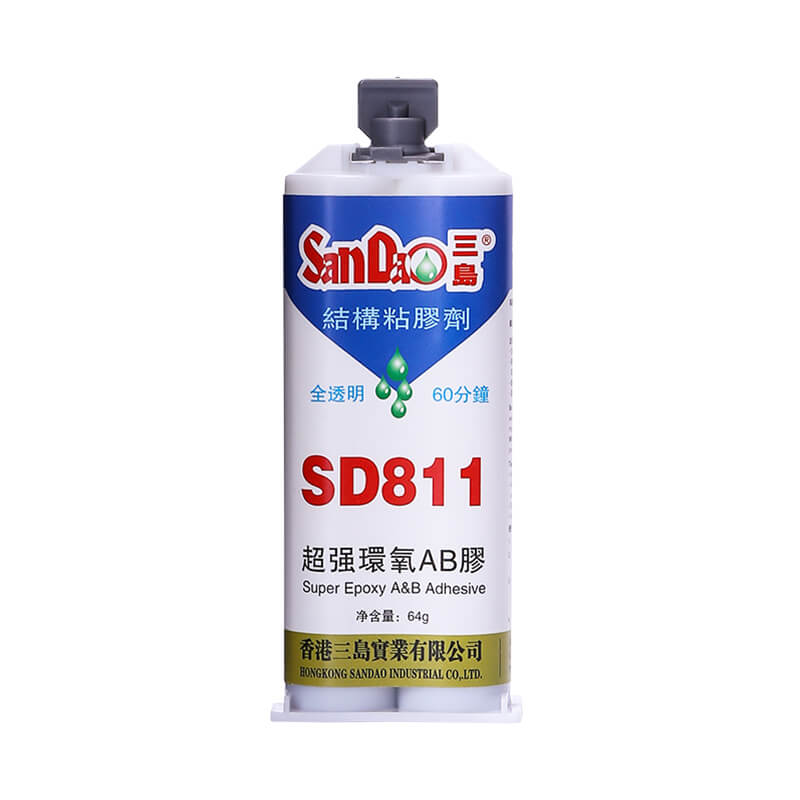

AB mixing tube
packaging specifications: 64g / tube.
Put on AB glue gun and put on the thread mixing head.
The thickness of adhesive layer should be 0.05mm, the coated object should be clamped immediately, and the maximum bonding strength will be guaranteed by uniform contact pressure.
To obtain the highest mechanical strength, the surface of the material can be polished or sandblasted, and then the dust and oil stains on the surface can be scrubbed with a special solvent.
Adhesive should be put on both sides of the object and fix the splice in avoid of dislocation. Do not mix the lid of A and B to prevent contamination of the adhesive.
1. Epoxy resin AB glue is slightly irritating, please wear gas mask and anticorrosion gloves when operating.
2. Cover at any time after each extraction, lest moisture absorption affect curing and performance.
3. Mass use of this product needs to be in a well-ventilated place.
Packaging and preservation
Epoxy resin AB sealant is packed with AB mixed pipe, 64g/ pcs, transported as non-dangerous goods, should be stored in a dry, shady place (below 5 ℃ ~ 26 ℃), the shelf life is within 12 months from the date of manufacture.Company Features1.
Supported by plenty of fund, Huizhou SANDAO New Material Co., Ltd can be devoted to R&D and technology and keeps improving performance of epoxy ab glue . 2.
With the help of our professional and technical personnel, Huizhou SANDAO New Material Co., Ltd is technologically advanced in the ab glue market. 3.
We are committed to acting in an environmentally responsible way using best practice and best available materials in all our activities. Check it! Always following the market trends, the company aims at providing customers and potential consumers with all-around services such as custom-made products. Check it! Our company has made great efforts for environmental protection. All of our production processes are strictly controlled and inspected to meet the relevant environmental regulations. Check it!
