SANDAO inexpensive epoxy resin for heat sink

SANDAO inexpensive epoxy resin for heat sink

SANDAO inexpensive epoxy resin for heat sink

Model number
SD868
MOQ
1pcs
Color
transparent
Package
64g/ set
Main characteristic
transparent part A + dark brown B
Main application
high temperature resistant metal, ceramic etc.
Lead time
within a week after payment
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of SANDAO inexpensive epoxy resin for heat sink
Product Comparison
SANDAO New Material's silicone rubber is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.SANDAO New Material's silicone rubber has the following advantages over other similar products.
Company Advantages
1. SANDAO two part adhesive has passed a series of workmanship assessment. It has been assessed in terms of stitching, fiber construction, tensile strength, fastness to rubbing of fiber, etc.
2. Third-party test data of the product reflects its eligibility.
3. Products from Huizhou SANDAO New Material Co., Ltd are widely used in epoxy resin industries.
4. Huizhou SANDAO New Material Co., Ltd has advanced equipment, strong R&D strength, professional skill and perfect quality guarantee system.

our product

bg

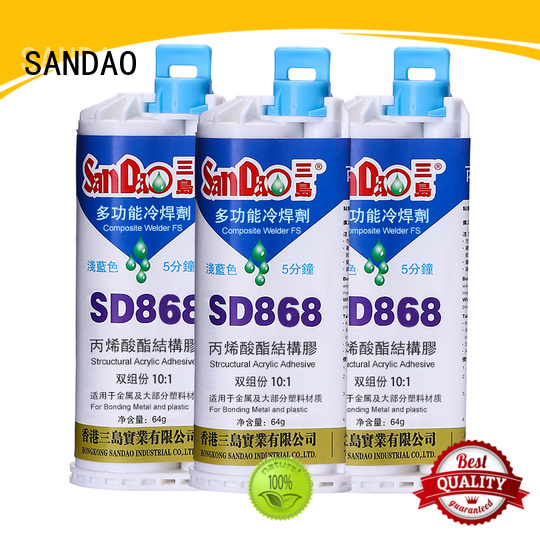

SANDAO inexpensive epoxy resin for heat sink-1
Electronic parts bonding potting adhesive SD868

Metal & plastic adhesive AB glue SD868 is a two-component high-temperature resistant adhesive based on epoxy resin. It has advantage of high strength, weak acid and alkali resistance, impact resistance, low smell, resistance to most chemical media, extreme temperature and excellent electrical insulation. Mainly suitable for high temperature resistant metal, ceramic, etc.



Feature

  • ◪   Electronic parts bonding potting adhesive SD868 has the advantages of fast curing , wide application, high bonding strength, water resistance, oil resistance, fatigue resistance.

  • ◪   Excellent resistance to high and low temperature. It can work in the temperature range of 60-150 ℃.

Application

bg


Sandao Metal & plastic adhesive AB glue SD868 is widely used in solid assembly of industrial components, such as sporting goods, solar, wind, composite materials, electronics, transportation and aerospace bonding reinforcement, adhesive synthesis, assembly, packaging, filling and sealing. It is especially suitable for bonding and packaging of electronic parts. There are many formulations to connect steel, aluminum, copper with low surface energy level plastics, glass, wood, masonry and other materials.



SANDAO inexpensive epoxy resin for heat sink-2

Ceramic bonding

SANDAO inexpensive epoxy resin for heat sink-3

Electric appliance

SANDAO inexpensive epoxy resin for heat sink-4

Glass bonding


SANDAO inexpensive epoxy resin for heat sink-5

Furniture bonding

SANDAO inexpensive epoxy resin for heat sink-6

Electroplating paint bonding

SANDAO inexpensive epoxy resin for heat sink-7

Motor component bonding



product Performance

bg


Epoxy resin AB glueSD868  part ASD868  part B
Appearance /colortransparentdark brown
Viscosity (mPa.s 25℃)8000-1200010000-13000
Specific gravity (g/ml 25℃)1.0-1.051.0-1.05
Ratio(weight ratio pbw)101
Gel time under normal temperature(25℃)20g2-4h
Curing time   80℃30mins
Temperature range(℃)-60℃-150℃
Hardness(shore-D)70/75
Epoxide equivalent(g/eq)185/190/
Active hydrogen equivalentg/eq/185/195
Distortion temperature HDT80℃
Solume resistivity(Ω.cm)25℃1.0~1015
Surface resistivity(Ω.cm)25℃0.9×1015
Shear strength of different materials(Mpa)
Aluminum / copper16-19
Steel17/20
ABS7-8

Product details

bg
SANDAO inexpensive epoxy resin for heat sink-8
Epoxy resin structural adhesive

SD868 is a high strength acrylate structural adhesive with a two component 10:1 system.


SANDAO inexpensive epoxy resin for heat sink-9
Yellow/blue liquid

It has fast bonding and firmness. hard and tough after curing. high bonding strength and impact resistance, and good resistant to aging and solvent.

SANDAO inexpensive epoxy resin for heat sink-10
Green environmental protection
Low odor, no pollution, high strength, weakAcid and alkali resistance, impact resistance High bonding strength, water resistance Oil resistance and fatigue resistance.
SANDAO inexpensive epoxy resin for heat sink-11
AB mixing tube
Very convenient to use, packaging specifications: specifications are 64g / support.

Use instructions

bg


  • Put on AB glue gun and put on the thread mixing head.

  • The thickness of adhesive layer should be 0.05mm, the coated object should be clamped immediately, and the maximum bonding strength will be guaranteed by uniform contact pressure.

  • To obtain the highest mechanical strength, the surface of the material can be polished or sandblasted, and then the dust and oil stains on the surface can be scrubbed with a special solvent.

  • Adhesive should be put on both sides of the object and fix the splice in avoid of dislocation. Do not mix the lid of A and B to prevent contamination of the gum.

Caution

  • 1.   This product is slightly irritating, please wear gas mask and anticorrosion gloves when operating.

  • 2.   Cover at any time after each extraction, lest moisture absorption affect curing and performance.

  • 3.   Mass use of this product needs to be in a well-ventilated place.


Packaging and preservation

bg


Epoxy resin AB sealant is packed with AB mixed pipe, 64g/ pcs, transported as non-dangerous goods, should be stored in a dry, shady place (below 5 ℃ ~ 26 ℃), the shelf life is within 12 months from the date of manufacture.


Company Features
1. Huizhou SANDAO New Material Co., Ltd is an enterprise integrating R&D, production and sales of two part adhesive . We have been committing to this industry for many years.
2. We've been focusing on manufacturing high quality epoxy resin for domestic and abroad customers.
3. SANDAO aims to be a globally competitive manufacturer. Please contact. SANDAO ​​provides enthusiasm for all customers together with stable supply and preferential prices. Please contact. Huizhou SANDAO New Material Co., Ltd always meets the real needs of each customer and aims to produce the perfect ab glue . Please contact.
Main Products

Our company mainly engaged in the follow products:

Uv Glue Series Used forUv Varnish Series Uv Monomer Series
1. Glass to Glass1. Paper Uv Varnish1. IBOA8. TMPTA
2. Glass to Photograph paper2. Ceramic tiles Uv Varnish2. IBOMA9. HDDA
3. Glass to PP/PVC paper3. Plastic parts Uv Varnish3. HEA10.DPGDA
4. Glass to Metal4. Car body Uv Varnish4. HEMA
5. Crystal Crafts5. Headlight Uv Varnish5. HPA
6. Acrylic6. Artifical Marble Uv Varnish6. HPMA
7. Car Windshield Repair 7. TPGDA
product description

parameter of Yellowing Resistance Colorless and Transparent Liquid Epoxy Hardener Uv Glue Resin for Crystal Crafts DIY for Jewelry

Product NameUV Glue for crystal crafts
Other NamesShadowless glue,UV adhesive,Photosensitive glue
BrandAllplace
Model201-84, 201c, 201f-9
AppearanceClear and Transparent Liquid
Viscosity (mpa.s/25℃):

80

Curing Requirements

UV Wave length: 365nm

Power of UV lamp: 40W

Distance between Lamp and surface:15cm

Exposure time: 60S

Usage

201-8 UV glue is for bonding of glass and photo paper,glass and glass.



Yellowing Resistance Colorless and Transparent Liquid Epoxy Hardener Uv Glue Resin for Crystal Crafts DIY for Jewelry

Notice when application

1).Make sure the glass is clean and dry.
2).In order to ensure the stability , blow the glass surface make sure it is dry without moisture, in winter construction
3) Crystal Photo Adhesive irritated to eye and skin. Thoroughly flush the eyes with water at least 20 minutes, and seek medical attention, if splashed in eyes incaution
4).Only for industrial use, please refer to instructions and Material Safety Data Sheet for health and safety
