Electronic flame retardant yellow adhesive SD688

Electronic flame retardant yellow adhesive SD688 is high strength fixed adhesive modified by Chlorobutadiene rubber. It’s with high drying speed, strong adhesion, good heat resistance, good aging resistance, high insulation impedance, suitable for boning and fixing of display, power supply, electronics, automotive and industrial parts. It improved the electrical properties and thermal resistance of previous products. It can be bonded at room temperature, and with a little pressure it will show a strong bonding force.

Feature

◪ Sandao Electronic flame retardant yellow adhesive SD688 has the advantages of excellent adhesive strength, high hardness, moisture-proof, anti-static, shockproof and flame-retardant.
◪ It’s in line with the UL94-V0 grade. These advantages made the electronic components run safely under harsh conditions.

Application

Sandao Electronic flame retardant yellow adhesive are widely used in bonding and fixing display, power supply, electronic products, coils, transformers, automobile and industrial parts, it’s insulation, ash proof, with the function of fixing scattered parts on printed circuit board, fasten large parts to prevent them from moving during welding.

SANDAO high-energy rtv silicone rubber certifications for electronic products-2

Coil bonding

SANDAO high-energy rtv silicone rubber certifications for electronic products-3

Display bonding

SANDAO high-energy rtv silicone rubber certifications for electronic products-4

Power supply bonding

SANDAO high-energy rtv silicone rubber certifications for electronic products-5

Transformer bonding

SANDAO high-energy rtv silicone rubber certifications for electronic products-6

Electronic product bonding

SANDAO high-energy rtv silicone rubber certifications for electronic products-7

Automotive and industrial parts bonding

product Performance

Item	SD688
Appearance	Yellowish viscous liquid
Viscosity（mpa.s)	17000-21000
Specific gravity	1.03-1.07
Solid content（%）	44-48
Flash point	-17.2℃
burning point	268℃
Tack-free time（min）	3-5
Temperature tolerance range（℃）	-35～110
Flame retardant grade	UL94-VO

Mark: The above properties are all at 25℃,7days after complete curing. Data may different due to the changes of the environmental, temperature and humidity conditions.

Product details

SANDAO high-energy rtv silicone rubber certifications for electronic products-8

Electronic flame retardant yellow glue

SD688 electronic flame retardant yellow glue,Is a high strength fixed adhesive such As chloroprene rubber modified.

SANDAO high-energy rtv silicone rubber certifications for electronic products-9

Light yellow viscous liquid

It can be bonded at room temperature, and it will show strong adhesion as long as a small pressing is applied.

SANDAO high-energy rtv silicone rubber certifications for electronic products-10

Green environmental protection

Fast drying speed, strong force, good heat Resistance, good aging resistance, high Insulation resistance. Contains No harmful substances.

SANDAO high-energy rtv silicone rubber certifications for electronic products-11

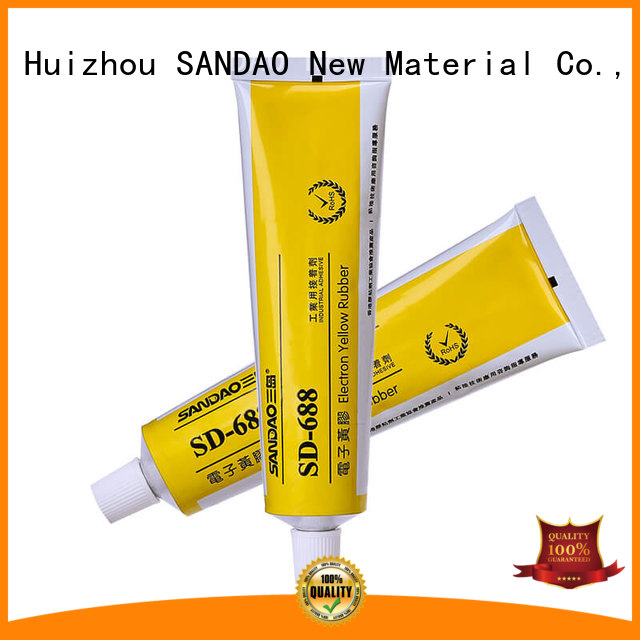

Aluminum tube packaging

Very convenient to use, gently squeeze, you can glue, packaging specifications: specifications are 100ml/pcs.

Use instructions

A variety of bonding methods can be used. Such as: glue gun, traditional brushing, adhesive surface clean, double side glue (one side glue as appropriate).
Acetyl acetate, gasoline and other solvents can used as cleaning.

Packaging and preservation

This product with aluminum tube packaging, specifications of 100ml/tube, this product should be stored in dry cool (below 25 ℃) place. The shelf life of this product is within 12 months from the date of manufacture.
