SANDAO New Material has professional production workshops and great production technology. silicone rubber we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.SANDAO New Material's silicone rubber has been further improved based on advanced technology, as reflected in the following aspects.

Company Advantages
1. SANDAO Thermal conductive material TDS has gone through a series of complete production processes which include CAD software design, frame construction, and treatment of panel appearance.
2. This kind of product adopts advanced technology and a new type of material with the function of abrasion resistance and strong impact resistance.
3. This is the bedding that is amazingly soft, gentle on skin, wash and dry well, and is of a great comfort.
4. People who have used it for two years say that because of the high strength of its stiching, they are not worried that it will be easily torn.
5. The survey shows that up to one-third of purchases are based entirely on the appealing appearance of this packaging.

our product

SANDAO durable gas resistant rtv resistant for induction cooker-1

High temperature resistant heat conductive silicone grease SD920

High temperature resistant heat conductive silicone grease SD920 is single component which is made from imported silicone as the main body, filling materials, thermal conductive materials and other polymer materials. It’s compound of organosiloxane and metal oxides which with good thermal conductivity and insulation. This grease has excellent thermal conductivity, no curing, no powdering, high temperature resistance, low adhesion pressure, oxidation resistance, no air drying, no hardening or melting, low thermal resistance, good electrical insulation, Wide operating temperature (-50 ℃ ~ 200 ℃), good stability, low consistency and good operation performance. The silicone grease is non-toxic, non-corrosive, tasteless, never curing and insoluble.

Application

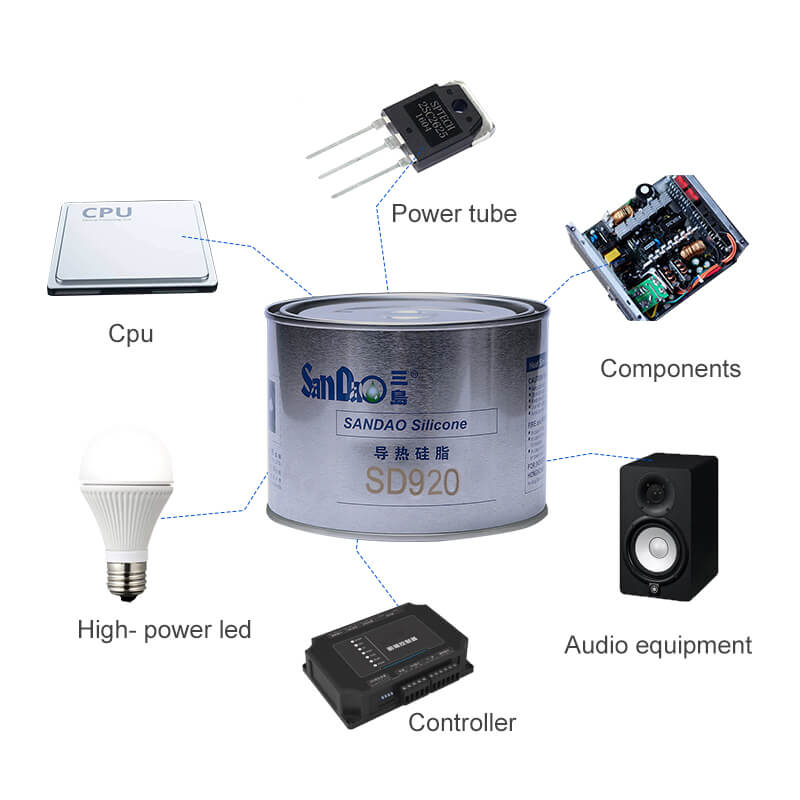

Sandao thermal conductive silicone grease is widely used to fill the gap between power heating element and radiator, especially used for high power LED heat dissipation or coating to derive the heat produced by components. Such as CPU and radiator gap filling, high-power transistor, thyristor element, diode and substrate (aluminum, copper) converter, power module, oven, induction cooker, coffee pot gap filling, TV power amplifier tube and heat sink, Semiconductor refrigeration, etc. Reduce the working temperature of the heating element.

SANDAO durable gas resistant rtv resistant for induction cooker-2

High power triode

Induction cooker

Oven gap filling

SANDAO durable gas resistant rtv resistant for induction cooker-5

LED heat dissipation gap filling

SANDAO durable gas resistant rtv resistant for induction cooker-6

Power module

SANDAO durable gas resistant rtv resistant for induction cooker-7

CPU gap filling

product Performance

Performance	Test data
Appearance	Gray paste
Penetration degree（1/10mm，25℃）	280～340
Specific gravity（g/cm3）	2.6-3.0
Bleed（%。150℃，8h）	≤2.0
Fugitive constituent（%。150℃，8h）	≤2.0
Break down strength（kv/mm）	≥2.0
Volume resistivity（Ω.cm）	4×10¹⁴
Thermal conductivity（w/m·k）	≥2.0

Product details

SANDAO durable gas resistant rtv resistant for induction cooker-8

General purpose thermal grease

SD920 general-purpose thermal grease uses imported silicone-based one-component silicone thermal grease.

SANDAO durable gas resistant rtv resistant for induction cooker-9

Green environmental protection

Non-toxic, non-corrosive, odorless, non-drying, insolubilization, low consistency.

SANDAO durable gas resistant rtv resistant for induction cooker-10

Gray paste

Excellent thermal conductivity, non curing, high temperature resistance, low adhesion pressure, low thermal resistance, good electrical insulativity.

SANDAO durable gas resistant rtv resistant for induction cooker-11

Iron bottle packaging

packaging specifications: 1.0kg / can.

Use instructions

Clean the surface, remove the greasy dirt, then extrude thermal conductive silicon grease directly.
The uniform coating should be applied to the surface. The coating can be brushed, scraped or rolled as needed.
If the user uses silicone oil to dilute, not only occur oil separation easily, but also make the thermal conductivity smaller. Therefore, we suggest customers choose their ideal models to ensure the using quality.

Caution

The coating surface should be uniform, coating more isn’t mean the better, but in the premise of filling the surface gap, coating a thin layer is enough.

Packaging and preservation

Packing specification: 1.0kg/ can, negotiable to according to the user's needs.

Storage: store in a cool and dry place for one year.

Note: The above data are based on our extensive experiments and the results are reliable. However, due to the diversity of practical applications, the application conditions are not within our control, so users need to conduct tests before using to confirm whether this product is applicable or not. We do not warrant any problems arising from the use of our products under specified conditions and are not liable for any direct, indirect or accidental loss. If any problems in usage, you can contact our technical services department, we will do what we can to help you.
