SANDAO bonding resin adhesive effectively for electronic parts

SANDAO bonding resin adhesive effectively for electronic parts

SANDAO bonding resin adhesive effectively for electronic parts

Model number
SD868
MOQ
1pcs
Color
transparent
Package
64g/ set
Main characteristic
transparent part A + dark brown B
Main application
high temperature resistant metal, ceramic etc.
Lead time
within a week after payment
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Enterprise Strength
  • SANDAO New Material owns a comprehensive after-sales service system and information feedback channels. We have the ability to guarantee comprehensive service and effectively solve customers' problems.
Company Advantages
1. When it comes to comparing with other products, our clear epoxy glue is of greater appearance.
2. The strict quality standards make the worldwide export of this product possible.
3. The product is able to slow down the germ multiplication that can occur in food, allowing it to keep fresh longer.

our product

bg


Electronic parts bonding potting adhesive SD868

Metal & plastic adhesive AB glue SD868 is a two-component high-temperature resistant adhesive based on epoxy resin. It has advantage of high strength, weak acid and alkali resistance, impact resistance, low smell, resistance to most chemical media, extreme temperature and excellent electrical insulation. Mainly suitable for high temperature resistant metal, ceramic, etc.



Feature

  • ◪   Electronic parts bonding potting adhesive SD868 has the advantages of fast curing , wide application, high bonding strength, water resistance, oil resistance, fatigue resistance.

  • ◪   Excellent resistance to high and low temperature. It can work in the temperature range of 60-150 ℃.

Application

bg


Sandao Metal & plastic adhesive AB glue SD868 is widely used in solid assembly of industrial components, such as sporting goods, solar, wind, composite materials, electronics, transportation and aerospace bonding reinforcement, adhesive synthesis, assembly, packaging, filling and sealing. It is especially suitable for bonding and packaging of electronic parts. There are many formulations to connect steel, aluminum, copper with low surface energy level plastics, glass, wood, masonry and other materials.



Ceramic bonding

Electric appliance

Glass bonding


Furniture bonding

Electroplating paint bonding

Motor component bonding



product Performance

bg


Epoxy resin AB glueSD868  part ASD868  part B
Appearance /colortransparentdark brown
Viscosity (mPa.s 25℃)8000-1200010000-13000
Specific gravity (g/ml 25℃)1.0-1.051.0-1.05
Ratio(weight ratio pbw)101
Gel time under normal temperature(25℃)20g2-4h
Curing time   80℃30mins
Temperature range(℃)-60℃-150℃
Hardness(shore-D)70/75
Epoxide equivalent(g/eq)185/190/
Active hydrogen equivalentg/eq/185/195
Distortion temperature HDT80℃
Solume resistivity(Ω.cm)25℃1.0~1015
Surface resistivity(Ω.cm)25℃0.9×1015
Shear strength of different materials(Mpa)
Aluminum / copper16-19
Steel17/20
ABS7-8

Product details

bg

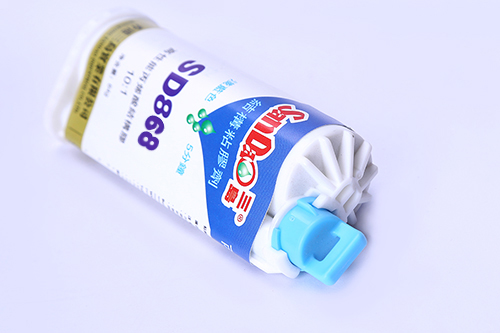

Epoxy resin structural adhesive

SD868 is a high strength acrylate structural adhesive with a two component 10:1 system.

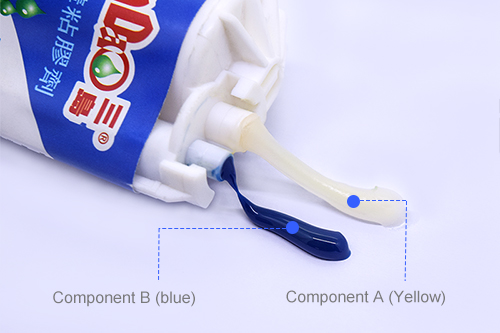

Yellow/blue liquid

It has fast bonding and firmness. hard and tough after curing. high bonding strength and impact resistance, and good resistant to aging and solvent.

Green environmental protection
Low odor, no pollution, high strength, weakAcid and alkali resistance, impact resistance High bonding strength, water resistance Oil resistance and fatigue resistance.

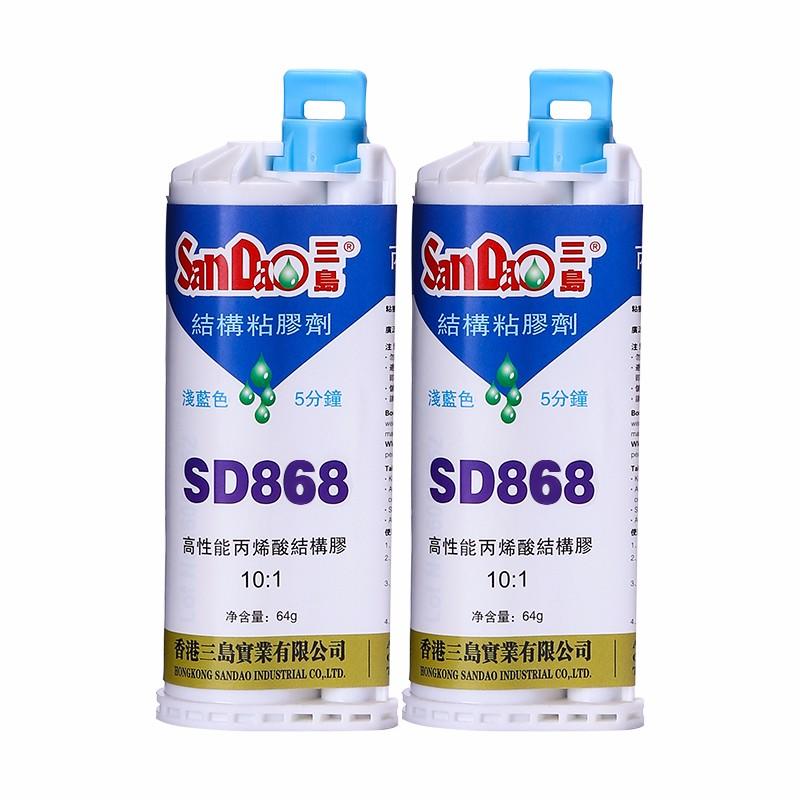

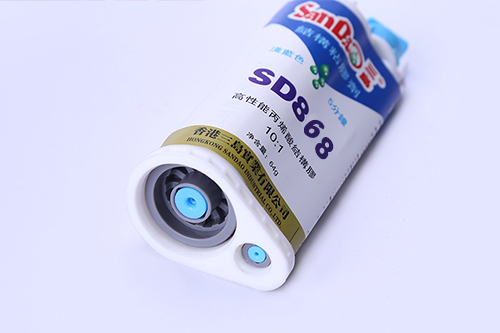

AB mixing tube
Very convenient to use, packaging specifications: specifications are 64g / support.

Use instructions

bg


  • Put on AB glue gun and put on the thread mixing head.

  • The thickness of adhesive layer should be 0.05mm, the coated object should be clamped immediately, and the maximum bonding strength will be guaranteed by uniform contact pressure.

  • To obtain the highest mechanical strength, the surface of the material can be polished or sandblasted, and then the dust and oil stains on the surface can be scrubbed with a special solvent.

  • Adhesive should be put on both sides of the object and fix the splice in avoid of dislocation. Do not mix the lid of A and B to prevent contamination of the gum.

Caution

  • 1.   This product is slightly irritating, please wear gas mask and anticorrosion gloves when operating.

  • 2.   Cover at any time after each extraction, lest moisture absorption affect curing and performance.

  • 3.   Mass use of this product needs to be in a well-ventilated place.


Packaging and preservation

bg


Epoxy resin AB sealant is packed with AB mixed pipe, 64g/ pcs, transported as non-dangerous goods, should be stored in a dry, shady place (below 5 ℃ ~ 26 ℃), the shelf life is within 12 months from the date of manufacture.
