lamp adhesive  economical company

Lamp adhesive economical company

Model number
SD916
MOQ
1pcs
Color
white paste/white semi-fluid
Package
150ml/pcs, 310ml/pcs, 2.6L/pcs
Main characteristic
Thermal conductivity is 1.2
Main application
bonding between CPU and heat sink, the high-power electrical module etc.
Lead time
within a week after payment
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Enterprise Strength
  • SANDAO New Material pays great attention to the team building of talents for it is the basic element for corporate development. We introduce talents and empower them to reach their full potentials regardless of geography. All this promotes efficient development.
  • SANDAO New Material constructs a scientific management system and a complete service system. We strive to provide customers with personalized and high-quality services and solutions to meet their different needs.
  • SANDAO New Material adheres to the service concept to be strict, honest and cooperative. We seek development in a pragmatic and innovative way by taking quality safety as the guarantee, by taking sci-tech as the support and taking customers' needs as the basis.
  • Since the establishment in 2004, SANDAO New Material has always maintained our initial heart, good attitude, and great enthusiasm. We have overcome the difficulties in the development. Currently, we are a good example for other companies to learn from. We gain a certain position in the industry based on great business strength.
  • SANDAO New Material has established long-term business relationships with many companies at home and abroad.
Product Comparison
SANDAO New Material provides diversified choices for customers. silicone adhesive is available in a wide range of types and styles, in good quality and in reasonable price.Compared with other products in the same category, silicone adhesive has the following major features.
Company Advantages
1. Our provided SANDAO is prepared using premium quality raw materials.
2. is applied to for its excellent properties of . It has been widely used in electronic device manufacturing
3. Compared with the other similar products, has obvious superiority such as . Its quality directly benefits the service life of the products that use it
4. Steps of are carried out in a general production area. It is a very strong impregnation product
5. Most costumers considered are and worth of trust. After curing, it can withstand torque without breaking

our product

bg


Thermal conductive silica gel SD916
Thermal conductive silica gel SD916 has both bonding and good thermal (heat dissipation) properties. The thermal conductive silica gel is a reinforced neutral silicone elastic rubber. After curing, the rubber has good resistance to high and low temperature changes. It will not fall off after long-term use, and will not cause contact gaps to reduce heat dissipation.

Application

bg


The most important application is to replace the thermal grease (paste) for the filling and bonding between the CPU and the heat sink, the thyristor intelligent control module and the heat sink, the high-power electrical module and the heat sink.

Microwave oven adhesive seal

Radiator filling and bonding

Refrigerator bonding seal


Semiconductor material bonding

Thyristor filling and bonding

CPU bonding



product Performance

bg


TypeSD916SD9201SD920
Colorwhitewhitewhite
Viscosity(cp)pastepastesemi-fluid
Density(g/cm3)2.0~2.52.0~2.53.0~3.5
Tack-free time(25℃,min)≤30≤30≤30
Tensile strength (MPa)≥2.5≥2.5≥2.5
Elongation(%)≥100≥100≥100
Shear strength(MPa)≥1.5≥1.5≥1.5
Hardness (shore A)50~6550~6550~65
Temperature range(℃)-60~280-60~280-60~280
Dielectric intesity(kV/mm)≥18≥18≥18
Permittivity(@60Hz)2.82.82.8
Volume Resistance(Ω.cm)1×10151×10151×1015
Thermal conductivity(w/(m.k)) 1.20.82.0

Product details

bg

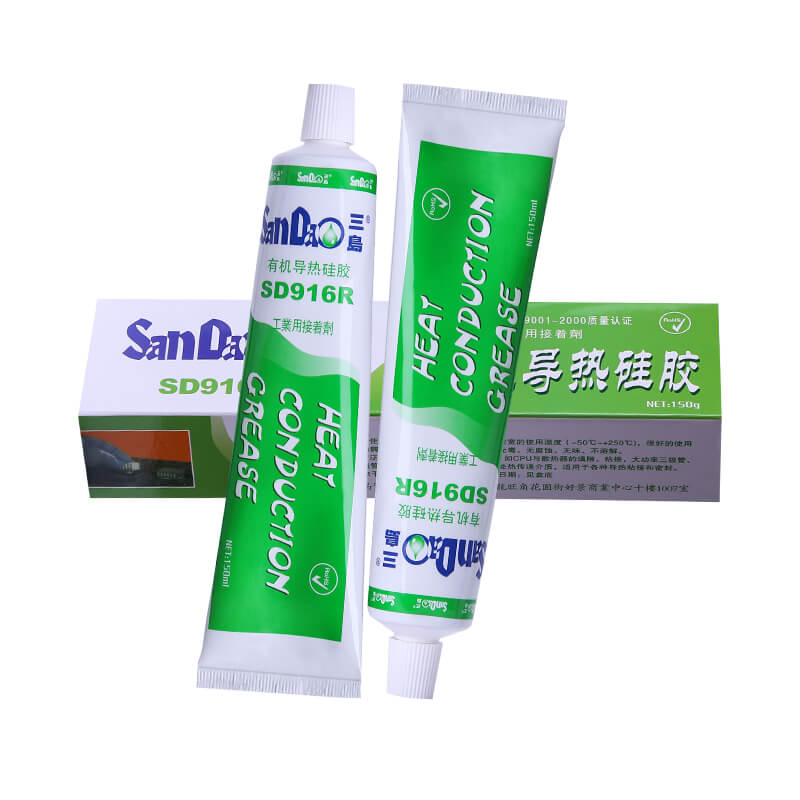

Thermal conductivity paste
SD916 thermal silica gel is a one-component Room temperature curing adhesive It has both bonding and good thermal (heat dissipation) properties.
Eco-environmental protection
Neutral non-corrosive, odorless, non-pollution,Is a reinforced neutral silicone elastic rubber.
White paste
After curing, it has excellent resistance to high and low temperature, will not fall off after long-term use, and will not produce bonding gap to reduce heat dissipation effect.
Metal hose packaging
Packaging specifications: 100g /tube, 310ml/ plastic cartridge,2.6L/ bottle

Use instructions

bg


  • Cleaning the surface of the adhered or coated object to remove rust, dust and oil.

  • Unscrew the rubber cap and squeeze the glue onto the cleaned surface to make it evenly distributed.

  • Place the glued or sealed parts in the air to allow them to cure naturally. The curing process is a curing process from the surface to the inside. The glue will cure to a depth of 2-4 mm within 24 hours (room temperature and 55% relative humidity). If the position is deep, especially in areas where air is not easily accessible, The time to complete cure will be extended, and if the temperature is lower, the cure time will also be extended.

Notes:

  • 1.   Keep thermal paste out of reach of children.

  • 2.   Manufacturer shall not be liable to the buyer or any third party for injury, loss or damage directly or indirectly resulting from the use of, or inability to use, the product. Recommendations or statements other than those contained in a written agreement signed by an officer of the manufacturer shall not be binding by the manufacturer. This product has not been tested for, and is therefore not recommended for, uses for which prolonged contact with mucous membranes, abraded skin, or blood is intended; or for uses which implantation within the human body is intended.
