With wide application, ms adhesive can be used in the following aspects.SANDAO New Material is committed to providing customers with high-quality silicone rubber as well as one-stop, comprehensive and efficient solutions.

Product Details

With the pursuit of perfection, SANDAO New Material exerts ourselves for well-organized production and high-quality silicone adhesive. silicone adhesive has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.

Company Advantages
1. SANDAO Thermal conductive material TDS adopts imported raw materials to ensure the smooth production process.
2. The product has to be scrutinized by our professional quality inspection team before delivery to ensure that it meets highest standards of reliability and quality.
3. People can have faith in the fact that it has a very long life expectancy and can last for a lifetime if it is maintained properly.

our product

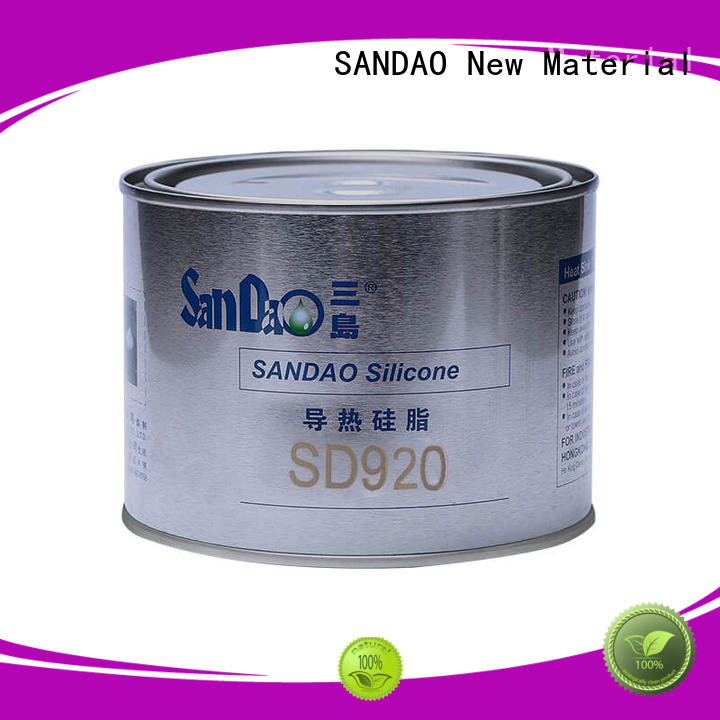

High temperature resistant heat conductive silicone grease SD920

High temperature resistant heat conductive silicone grease SD920 is single component which is made from imported silicone as the main body, filling materials, thermal conductive materials and other polymer materials. It’s compound of organosiloxane and metal oxides which with good thermal conductivity and insulation. This grease has excellent thermal conductivity, no curing, no powdering, high temperature resistance, low adhesion pressure, oxidation resistance, no air drying, no hardening or melting, low thermal resistance, good electrical insulation, Wide operating temperature (-50 ℃ ~ 200 ℃), good stability, low consistency and good operation performance. The silicone grease is non-toxic, non-corrosive, tasteless, never curing and insoluble.

Application

Sandao thermal conductive silicone grease is widely used to fill the gap between power heating element and radiator, especially used for high power LED heat dissipation or coating to derive the heat produced by components. Such as CPU and radiator gap filling, high-power transistor, thyristor element, diode and substrate (aluminum, copper) converter, power module, oven, induction cooker, coffee pot gap filling, TV power amplifier tube and heat sink, Semiconductor refrigeration, etc. Reduce the working temperature of the heating element.

High power triode

Induction cooker

Oven gap filling

LED heat dissipation gap filling

Power module

CPU gap filling

product Performance

Performance	Test data
Appearance	Gray paste
Penetration degree（1/10mm，25℃）	280～340
Specific gravity（g/cm3）	2.6-3.0
Bleed（%。150℃，8h）	≤2.0
Fugitive constituent（%。150℃，8h）	≤2.0
Break down strength（kv/mm）	≥2.0
Volume resistivity（Ω.cm）	4×10¹⁴
Thermal conductivity（w/m·k）	≥2.0

Product details

General purpose thermal grease

SD920 general-purpose thermal grease uses imported silicone-based one-component silicone thermal grease.

Green environmental protection

Non-toxic, non-corrosive, odorless, non-drying, insolubilization, low consistency.

Gray paste

Excellent thermal conductivity, non curing, high temperature resistance, low adhesion pressure, low thermal resistance, good electrical insulativity.

Iron bottle packaging

packaging specifications: 1.0kg / can.

Use instructions

Clean the surface, remove the greasy dirt, then extrude thermal conductive silicon grease directly.
The uniform coating should be applied to the surface. The coating can be brushed, scraped or rolled as needed.
If the user uses silicone oil to dilute, not only occur oil separation easily, but also make the thermal conductivity smaller. Therefore, we suggest customers choose their ideal models to ensure the using quality.

Caution

The coating surface should be uniform, coating more isn’t mean the better, but in the premise of filling the surface gap, coating a thin layer is enough.

Packaging and preservation

Packing specification: 1.0kg/ can, negotiable to according to the user's needs.

Storage: store in a cool and dry place for one year.

Note: The above data are based on our extensive experiments and the results are reliable. However, due to the diversity of practical applications, the application conditions are not within our control, so users need to conduct tests before using to confirm whether this product is applicable or not. We do not warrant any problems arising from the use of our products under specified conditions and are not liable for any direct, indirect or accidental loss. If any problems in usage, you can contact our technical services department, we will do what we can to help you.
