high-energy rtv silicone rubber flame for diode

high-energy rtv silicone rubber flame for diode

High-energy rtv silicone rubber flame for diode

Model number
SD916
MOQ
1pcs
Color
white paste/white semi-fluid
Package
150ml/pcs, 310ml/pcs, 2.6L/pcs
Main characteristic
Thermal conductivity is 1.2
Main application
bonding between CPU and heat sink, the high-power electrical module etc.
Lead time
within a week after payment
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Details
SANDAO New Material pays great attention to product quality and strives for perfection in every detail of products. This enables us to create fine products.silicone rubber, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.
Enterprise Strength
  • After years of laborious development, SANDAO New Material has a comprehensive service system. We have the ability to provide products and services for numerous consumers in time.
Company Advantages
1. SANDAO rtv silicone is finished efficiently from material selection to packaging.
2. The product has optimized heat dissipation performance. Thermal adhesive or thermal grease is filled to the air gaps between the product and the spreader on the device.
3. With the strong support of our factory, the product shows competitive advantages in the market.
4. The product can bring great value to customers and has become a hot product in the market.

our product

bg


high-energy rtv silicone rubber flame for diode-1

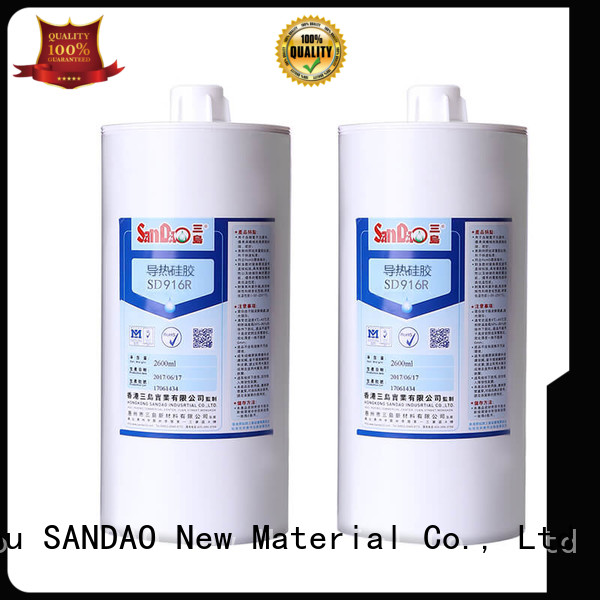

Thermal conductive silica gel SD916
Thermal conductive silica gel SD916 has both bonding and good thermal (heat dissipation) properties. The thermal conductive silica gel is a reinforced neutral silicone elastic rubber. After curing, the rubber has good resistance to high and low temperature changes. It will not fall off after long-term use, and will not cause contact gaps to reduce heat dissipation.

Application

bg


The most important application is to replace the thermal grease (paste) for the filling and bonding between the CPU and the heat sink, the thyristor intelligent control module and the heat sink, the high-power electrical module and the heat sink.

high-energy rtv silicone rubber flame for diode-2

Microwave oven adhesive seal

high-energy rtv silicone rubber flame for diode-3

Radiator filling and bonding

high-energy rtv silicone rubber flame for diode-4

Refrigerator bonding seal


high-energy rtv silicone rubber flame for diode-5

Semiconductor material bonding

high-energy rtv silicone rubber flame for diode-6

Thyristor filling and bonding

high-energy rtv silicone rubber flame for diode-7

CPU bonding



product Performance

bg


TypeSD916SD9201SD920
Colorwhitewhitewhite
Viscosity(cp)pastepastesemi-fluid
Density(g/cm3)2.0~2.52.0~2.53.0~3.5
Tack-free time(25℃,min)≤30≤30≤30
Tensile strength (MPa)≥2.5≥2.5≥2.5
Elongation(%)≥100≥100≥100
Shear strength(MPa)≥1.5≥1.5≥1.5
Hardness (shore A)50~6550~6550~65
Temperature range(℃)-60~280-60~280-60~280
Dielectric intesity(kV/mm)≥18≥18≥18
Permittivity(@60Hz)2.82.82.8
Volume Resistance(Ω.cm)1×10151×10151×1015
Thermal conductivity(w/(m.k)) 1.20.82.0

Product details

bg
high-energy rtv silicone rubber flame for diode-8
Thermal conductivity paste
SD916 thermal silica gel is a one-component Room temperature curing adhesive It has both bonding and good thermal (heat dissipation) properties.
high-energy rtv silicone rubber flame for diode-9
Eco-environmental protection
Neutral non-corrosive, odorless, non-pollution,Is a reinforced neutral silicone elastic rubber.
high-energy rtv silicone rubber flame for diode-10
White paste
After curing, it has excellent resistance to high and low temperature, will not fall off after long-term use, and will not produce bonding gap to reduce heat dissipation effect.
high-energy rtv silicone rubber flame for diode-11
Metal hose packaging
Packaging specifications: 100g /tube, 310ml/ plastic cartridge,2.6L/ bottle

Use instructions

bg


  • Cleaning the surface of the adhered or coated object to remove rust, dust and oil.

  • Unscrew the rubber cap and squeeze the glue onto the cleaned surface to make it evenly distributed.

  • Place the glued or sealed parts in the air to allow them to cure naturally. The curing process is a curing process from the surface to the inside. The glue will cure to a depth of 2-4 mm within 24 hours (room temperature and 55% relative humidity). If the position is deep, especially in areas where air is not easily accessible, The time to complete cure will be extended, and if the temperature is lower, the cure time will also be extended.

Notes:

  • 1.   Keep thermal paste out of reach of children.

  • 2.   Manufacturer shall not be liable to the buyer or any third party for injury, loss or damage directly or indirectly resulting from the use of, or inability to use, the product. Recommendations or statements other than those contained in a written agreement signed by an officer of the manufacturer shall not be binding by the manufacturer. This product has not been tested for, and is therefore not recommended for, uses for which prolonged contact with mucous membranes, abraded skin, or blood is intended; or for uses which implantation within the human body is intended.
