The quality of SANDAO ge rtv silicone is guaranteed by conducting a series of tests. These tests include color shading tests, symmetry check, buckle check, zipper tests. It is an indispensable important insulating material for the electronics industry2.
SANDAO is an advanced Two-component addition-type potting adhesive TDS enterprise which is specializing in producing and designing ge rtv silicone. The product has good aging resistance3.
The product exposed to natural phenomena is not easily affected by temperature changes. It has passed the aging resistance test - the heat is applied for a certain period of time to check if there is any change. Long application period makes it suitable for large-volume automatic production line operations4.
The product features stable performance. The leakage problems have been eliminated, ensuring that it can work under low failure rates. Its quality directly benefits the service life of the products that use it
Sandao Two-component flame-retardant heat-conductive potting adhesiveSD6105
Sandao Two-component flame-retardant heat-conductive potting adhesiveSD6105 is suitable for long-term protection of sensitive circuits or electronic components, with stable dielectric insulation, the elastomer formed after curing is in a large range of temperature and humidity; Eliminating stresses from shocks and vibrations. It can maintain the original physical and electrical properties under various working conditions. This item has good chemical stability, easy to clean and remove after filling. in order to repair the electronic components. Excellent temperature resistance, can be used at-50 ℃ for a long period of time, fully in accordance with the European Union ROHS, can pass through the UL94-V0 fire-proof class.
SD6105 is used for sealing and potting of LED Street Light driving Power supply, LED spot light Power supply Module, Electroplating Power supply, Power Rectifier, Transformer, Generator PCB, oven and other High heating and fire prevention products, as well as large Power Electronic components, Coating protection of electronic modules and circuit boards which with high requirements for heat resistance and heat dissipation.
LED spotlight power module
LED street light drive power supply
|Before curing||Part A||appearance||black||white||gray|
|Part B||appearance||White liquid||White liquid||White liquid|
|Curing type||bi-component additive type||bi-component additive type||bi-component additive type|
|Viscosity after mix（cps)||3500～5500||3000～5500||3000～5500|
|Curing time（min 25℃)||480||480||480|
|Curing time（min 80℃)||20||20||20|
|tensile strength (Mpa)||＜1.50||＜1.50||＜1.50|
|shear strength (Mpa)||2.00||2.00||2.00|
|dielectric strength (KV/·㎜)||≥27||≥27||≥27|
|Leakage resistance index（V)||600||600||600|
|thermal conductivity [W/(m·K)]||0.80||0.80||0.80|
|inflaming retarding property||UL94-V0||UL94-V0||UL94-V0|
Mark: The above properties were measured at room temperature.
Thermally conductive flame retardant potting sealant
SD6105 is a two component 1:1 cross-linking by reaction, gray, solidified into a high performance elastomer.
It has stable dielectric insulation properties, temperature resistance, good chemical stability, and easy to clean and remove after potting.
Non-corrosion, non-pollution and EU RoHS standard with flame resistance UL94-V0

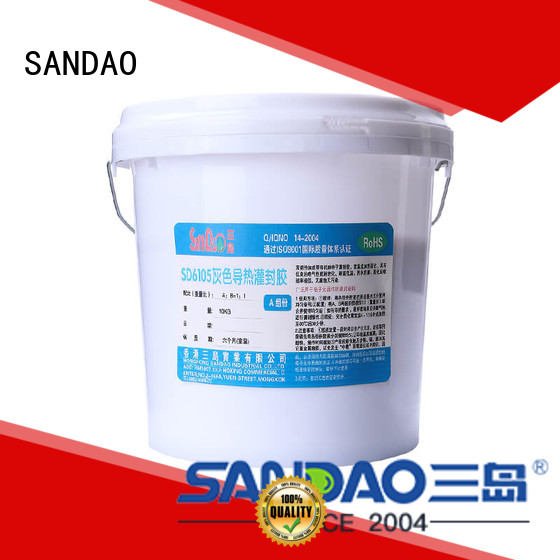

Plastic barrel seal
packaging, protective glue, 10kg /set (component A/ 5kg .component B/5kg), shelf life of 12 months.
1. Weighting: Accurate weighing the part A and part B. (stir A and stir B separately before weighting, Evenly redistribute slightly subsided fillers into glue.)
2. Mix glue: B component is added to A component and mixed evenly;
3. Remove air bubbles: The evenly mixed rubber material is placed in the vacuum cabinet to remove foaming;
4. Pouring: After air bubbles removed, pouring the glue into the parts and components for potting; (the surface of the parts and the mixing container before pouring should be clean and dry, do not contact with the compounds such as N、P、S、Sn、Pb、Hg、As, so as not to affect the solidification.
5. Curing: solidification of a potting part at room temperature or heated.
Packaging and preservation
10kg/ set (5kg component A plus 5kg component B), this product is nontoxic, non-dangerous goods, transported according to general chemicals, stored in a cool (room temperature) dry place, shelf life last for 12 months.Company Features1.
Huizhou SANDAO New Material Co., Ltd is regarded as a specialist in the Two-component addition-type potting adhesive TDS industry. SANDAO is skilled at improving our technical skills.2.
SANDAO successfully introduced high technology by mainly meeting the needs of development companies.3.
With our excellent technology, Two-component addition-type potting adhesive TDS has good quality and superior performance. SANDAO upholds the idea that the enterprise culture is strong guarantee for sustained and healthy development of the company. Inquire online!
