◪ High strength, high performance, elastic, instantaneous, two components, safety and environmental protection
suitable for fast fastening and bonding of metal, hard plastics, composite materials, glass, etc., especially for mobile phone and notebook shell, screen and keyboard frame, suitable for high speed production line in electronic factory.
Glass bonding
Hard plastic bonding
Phone case bonding
Composite bonding
Metal bonding
Notebook case bonding
| 1.Before curing | ||
| performance | Component A | Component B |
| color | white | blue |
| specific gravity（25℃） | 1.05 | 1.14 |
| Viscosity (25℃ m pa. s ) | 85000-100000 | 35000-50000 |
| 2.mixed characteristic | ||
| color | Blue | |
| ratio | A:B=10：1 | |
| Applicable time (mins) | 4 | |
| 3.After Curing characteristic | ||
| shear strength（N/mm.2) | PC/Aluminum magnesium | 10.02 |
| shear strength（N/mm.2) | PC/PC | 6.71 |
| Split / elongation % | 150 | |
| Hardness（shore- D) | 68 | |
| Working temperature（℃） | -50-130 | |
Remind:The above performance data are typical data measured in the temperature of 25 ℃, humidity of 70% of the laboratory environment, only for reference, we cannot guarantee all the data can achieve under a specific environment. Customers are kindly requested to use actual measure data in using.
Put on AB glue gun and put on the thread mixing head.
The thickness of adhesive layer should be 0.05mm, the coated object should be clamped immediately, and the maximum bonding strength will be guaranteed by uniform contact pressure.
To obtain the highest mechanical strength, the surface of the material can be polished or sandblasted, and then the dust and oil stains on the surface can be scrubbed with a special solvent.
Adhesive should be put on both sides of the object and fix the splice in avoid of dislocation. Do not mix the lid of A and B to prevent contamination of the gum.
1. AB adhesive is slightly irritating, please wear gas mask and anticorrosion gloves when operating.
2. Cover at any time after each extraction, lest moisture absorption affect curing and performance.
3. Mass use of this product needs to be in a well-ventilated place.
AB glue is packed with AB mixed pipe, 64g/ pcs, transported as non-dangerous goods, should be stored in a dry, shady place (below 5 ℃ ~ 26 ℃), the shelf life is within 12 months from the date of manufacture.
Descriptions and Features:
(1) solidifying rapidly within 3-5 minutes,
(2) suitable for small parts and structural strength
(3) can be used after one hour
(4) quick set and high adhesive performance
(5) can be lacquered and waxed
(6) waterproof and chemical medium
(7) joint layer is clear and elastic

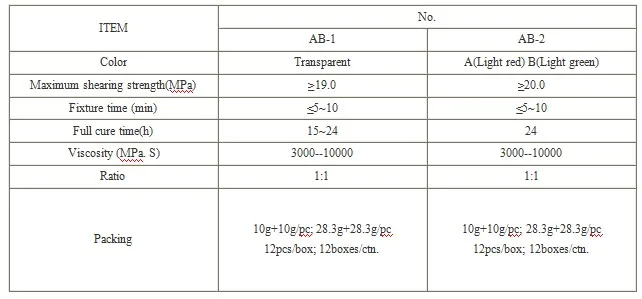

Technical Data Sheet:
Applications:
1. Can be used to bond, repair, and patch most articles except nylon, silicone, fluorine, resin, soft PVC, rubber, polyethylene and polypropylene.
2. It is idea for repairing electrical appliances, ceramic tiles, wooden, metallic, and concrete and glass articles.
3. Can be used for household and DIY applications to bond crystal, glass, jewelry.
