effective One-component RTV silicone rubber TDS module factory for substrate

effective One-component RTV silicone rubber TDS module factory for substrate

Effective One-component RTV silicone rubber TDS module factory for substrate

Model number
SD911
MOQ
1pcs
Color
Colorless, translucent and semi-fluid
Package
45g/pcs, 300ml/ pcs or as required by customer
Main characteristic
good adhesion to metal & most plastics,no fog, ROHS approved.
Main application
LED bulb lamp sealant etc.
Lead time
within a week after payment
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Application Scope
SANDAO New Material's silicone rubber is widely used in the Manufacturing Chemicals Other Chemicals industry.SANDAO New Material has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
Product Comparison
ms adhesive is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.Compared with other same kind of products in the market, SANDAO New Material's ms adhesive is equipped with the following outstanding advantages.
  • v s
Company Advantages
1. SANDAO One-component RTV silicone rubber TDS is required to be tested with regard to many aspects. They include contaminants and harmful substances testing, bacteria and fungi testing, durability testing, and slip resistance testing.
2. The product is less likely to occur color fading. The gel is finely coated on the surface, which provides a layer of protection to withstand sunlight damage.
3. Huizhou SANDAO New Material Co., Ltd has advanced business philosophy.

our product

bg


effective One-component RTV silicone rubber TDS module factory for substrate-1
LED bulb lamp adhesive sealant SD911
LED bulb lamp adhesive sealant SD911 (quick dry silicone sealant) is a kind of quick adhesive for LED lamp, automotive lampshade, solar photovoltaic module and TPT/TPE back film etc. With excellent insulation, good adhesion, moisture proof, anti-seismic, Corona resistance, anti-leakage. The adhesive has good adhesion to metal and most plastics, and has excellent resistance to cold and heat (- 50 ~ 250 ℃) after curing.

Feature

  • ◪   no fog, release alcohol substances when curing.

  • ◪   Using in polycarbonate (PC), copper and other materials, non-corrosive, non-irritating gas release; fully in accordance with the requirements of the European Union ROHS Directive.

  • ◪   It has good adhesion and aging resistance to many kinds of materials. The properties are stable at -50 ℃ and 250 ℃.

Application

bg


1.This silicone sealant is used for bonding and waterproof sealing of barrier pipe in optoelectronic industry.
2.used for bonding and sealing LED bulb lamp, automobile lamp, underwater lamp, washing lamp, hard lamp bar, engineering plastic, metal, glass and ceramics
3.used for bonding ,strengthening and moisture-proof sealing of electronic components on electronic circuit board.

effective One-component RTV silicone rubber TDS module factory for substrate-2

LED bulb bonding

effective One-component RTV silicone rubber TDS module factory for substrate-3

Heat lamp bonding

effective One-component RTV silicone rubber TDS module factory for substrate-4

Hard light bar bonding


effective One-component RTV silicone rubber TDS module factory for substrate-5

Underwater lamp bonding

effective One-component RTV silicone rubber TDS module factory for substrate-6

Glass bonding

effective One-component RTV silicone rubber TDS module factory for substrate-7

Car light bonding



product Performance

bg


ItemSD911SD911
AppearanceColorless, translucent and semi-fluidColorless translucent paste
Density (g/cm3)1.0~1.11.0~1.1
Tack-free time(25℃,min)3~103~10
Tensile strength(MPa)≥2.0≥2.0
Elongation(%)200~300200~300
Shear strength(MPa)≥2.0≥2.0
Hardness (shore A)25~3025~30
Temperature range(℃)-50~250-50~250
Dielectric constant(@60Hz)3.03.0
Dielectric strength(kV/mm)≥20≥20
Volume resistivity(Ω.cm)2.0×10152.0×1015

Product details

bg
effective One-component RTV silicone rubber TDS module factory for substrate-8

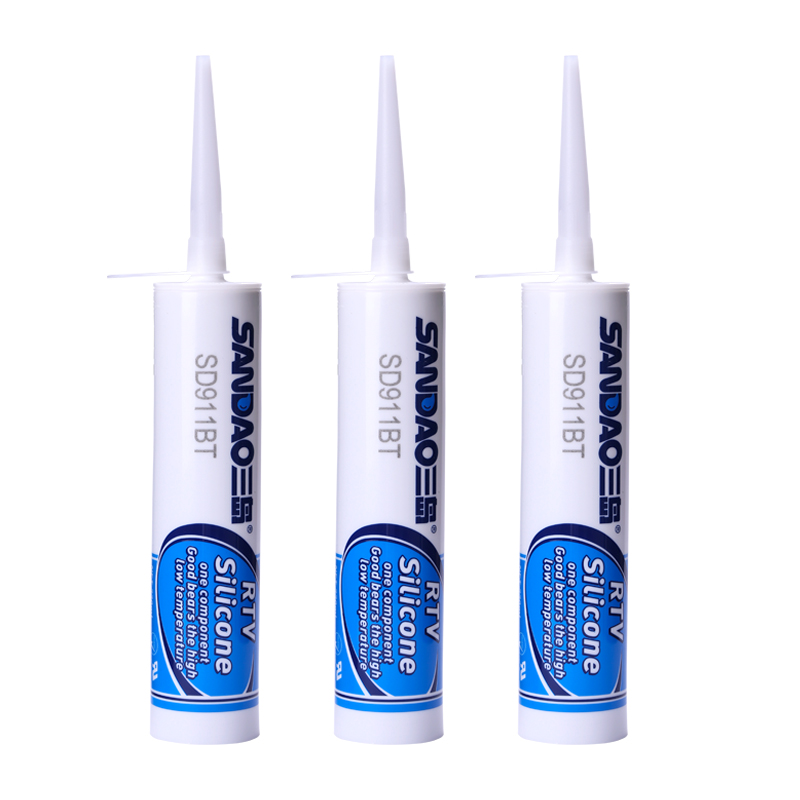

SD911 LED Bulb Bond Adhesive
SD911 (Quick-drying silicone sealant) series is a kind of LED lighting, quick-bonding LED bulb, energy-saving lamp and lamp shell bonding and sealing surface.
effective One-component RTV silicone rubber TDS module factory for substrate-9
Colorless translucent semi-flowing
Excellent insulation, good adhesion, moisture, shock, corona, and leakage resistance. It has excellent resistance to cold and heat exchange (-50~250°C) after curing.
effective One-component RTV silicone rubber TDS module factory for substrate-10
Environmental protection
Non-corrosive, non-irritating gas release; in line with EU ROHS directive requirements. Good adhesion to a variety of materials, good aging resistance.
effective One-component RTV silicone rubber TDS module factory for substrate-11
Storage
Shelf life is 12 months,packing specification: 45g /tube, 300ml /tube.

Use instructions

bg


  • Clean the surface of objects which to be sticky or coated, remove rust, dust and oil.

  • First prick the rubber pipe with the cap tip, put the tip on, squeeze the glue into the cleaned surface, distribute it evenly, and fasten the adhesive surface together.

  • The coated parts are placed in air and solidified at room temperature for 24 hours.

Caution

  • After the operation is completed, the silicone sealant should tighten the cap immediately and seal and save. When reusing, if there is a little skin seal, remove it,this will not affect the normal use.


Packaging and preservation

bg


Packing specification: 45g/pcs, 300ml/ pcs or as required by customer.

Storage: stored in a cool and dry place for 12 months.

Note: The above data are based on our extensive experiments and the results are reliable. However, due to the diversity of practical applications, the application conditions are not within our control, so users need to conduct tests before using to confirm whether this product is applicable or not. We do not warrant any problems arising from the use of our products under specified conditions and are not liable for any direct, indirect or accidental loss. If any problems in usage, you can contact our technical services department, we will do what we can to help you.
