coating rtv silicone for diode SANDAO

coating rtv silicone for diode SANDAO

Model number
SD399
MOQ
1pcs
Color
White/black/ transparent
Package
310ml/pcs
Main characteristic
meet MIL-A-461468 Corrosive Test Standard
Main application
Printed Circuit board coating etc.
Lead time
within a week after payment
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Details
Next, SANDAO New Material will present you with the specific details of silicone adhesive.SANDAO New Material's silicone adhesive is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.
Company Advantages
1. SANDAO rtv silicone is designed considering the water treatment process which includes the aspects of filtration, ion exchange, and membrane bioreactors.
2. Compared with other products, this product has the advantages of long service life, stable performance and good usability.
3. The quality inspection of the product is carried out by the QC team. The inspection is not only in line with international standards but meets the requirements of the customers.
4. 刘秋红

our product

bg

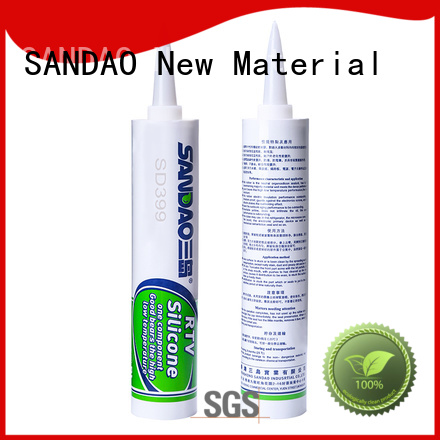

Printed circuit board coating SD399
Printed circuit board coating SD399 is a fluid, one-component, fast-curing, non-corrosive silicone rubber adhesive sealant that cures into a silicone elastomer in air. This product complies with: MIL-A-461468 Corrosive Test Standard. Excellent electrical insulation performance against ozone and chemical attack.

Application

bg


The silicone adhesive is suitable for waterproofing of electronic coatings, LCD modules for potting, solar energy, automobiles, home appliances, electrical appliances, circuit boards, etc.

Ceramic bonding

LCD module

Metal bonding


Plastic bonding

Electronic product bonding

Glass bonding



product Performance

bg


TypeSD399SD399BSD399W
ColorColorless transparent semi-fluidBlack semi-fluidWhite semi-fluid
Density(g/cm3)1.0~1.11.0~1.11.0~1.1
Tack-free time(25℃,min)≤40≤40≤40
Tensile strength(MPa)≥1.5≥1.5≥1.5
Elongation(%)200~300200~300200~300
Shear strength(MPa)≥1.0≥1.0≥1.0
Hardness(shore A)20~3020~3020~30
Temperature (℃)-50~200-50~200-50~200
Permittivity(@60Hz)2.82.82.8
Dielectric intesity(kV/mm)≥20≥20≥20
Volume Resistance(Ω.cm)2.0×10152.0×10152.0×1015

Product details

bg
SD399 circuit board coated with silicone
SD399 circuit board coating is a fluid, one-component, fast curing, non-corrosive silicone rubber adhesive sealant.
Green environmental protection
Rapid vulcanization, very low odor, release of alcohol vapor during vulcanization
Colorless transparent rogue
Excellent heat resistance and cold resistance, -50 to 200 ° C, excellent weather resistance, ozone resistance and chemical resistance, excellent electrical insulation properties
Long storage period
Store in a cool, dry place with a shelf life of six months. Packing specification: 330ML / PCS or according to customer requirements.

Use instructions

bg


  • First, surface of the substrate is cleaned to remove rust, dust and oil.

  • Second the silicone adhesive sealant has a surface cure time of about 20 minutes and is fully cured after 24 hours.

Notes:

  • 1.   Keep thermal paste out of reach of children.

  • 2.   Manufacturer shall not be liable to the buyer or any third party for injury, loss or damage directly or indirectly resulting from the use of, or inability to use, the product. Recommendations or statements other than those contained in a written agreement signed by an officer of the manufacturer shall not be binding by the manufacturer. This product has not been tested for, and is therefore not recommended for, uses for which prolonged contact with mucous membranes, abraded skin, or blood is intended; or for uses which implantation within the human body is intended.
